Product Applications

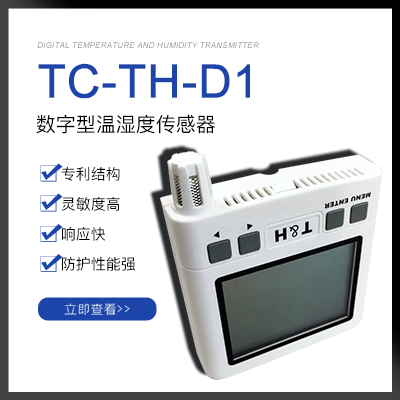

TC-TH-D1 numerical temperature and humidity sensor adopts imported high-precision semiconductor sensitive components, which is suitable for measuring the temperature and humidity in the air in indoor, outdoor and complex environments. The product adopts a large-size LCD display, a special design of the probe external (with a design patent), with the high-precision.
TC-TH-D1 numerical temperature and humidity sensor adopts a large-size LCD display, a unique design of the probe external (with design patent), high-precision sensitive components monitor the temperature and humidity of the environment in real time, intuitively display on the LCD display and output 485 numerical signals to the post-amp collector at the same time for remote monitoring.
| project | Specifications |
| Supply voltage | 12V DC, range: 9~24VDC |
| Signal output | RS485 bus, MODBUS communication protocol |
| Temperature range | -20°C-70°C, accuracy: ±0.5°C |
| Humidity range | 0-100%RH, accuracy: ±3%RH |
| test range | 0-10%RH, accuracy: ±10%RH |
| Installation: | Wall-mounted, screw-fixed wall, or ceiling-mounted ceiling |
